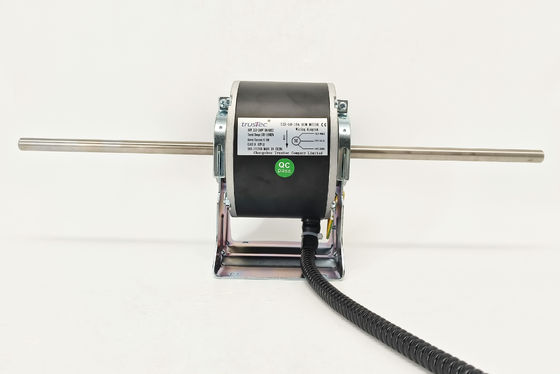

ECファンコイルユニットモーター - 1/15HP 220-240V 50/60HZ 300-1150RPM
原産地:チャン州,中国
ブランド名:trusTec
認定:CE
モデル番号:TZS-50-10A-UTZ
最低注文数量:200個
価格:Negotiable (FOB/CNF/CIF)
支払い条件:T/T,L/C
補給能力:100月1000個
タグ:
製品詳細
ハイライト:
エアコン用ECファンモーター
,1150RPM ECファンモーター
,ECファンモーター 300RPM
Product:
ECファンコイルユニットモーター
Supply Voltage:
220-240V
Enclosure Type:
TEAO(全閉エアオーバー)
Supply Frequency:
50/60Hz
Thermal Overload:
自動熱過負荷機能を搭載
Current:
0.56A
Phase:
単相
Output Power:
1/15HP
Mounting:
ブラケット
Speed:
300〜1150RPM
Bearings:
ボールベアリング
Poles:
10セント
Mounting Orientation:
オールアングル
Flat Length:
3.15"/80mm
Insulation Class:
クラスB
Shaft Length:
18.5"/470mm
Control Mode:
VSP 0-10V
Shaft Diameter:
0.49インチ / 12mm
Rotation:
CCW ((LE)
Lead Length:
62.99インチ/1600mm
Max. Ambient Temperature:
40℃/104℉
Motor Shell Length:
3.43インチ/87mm
