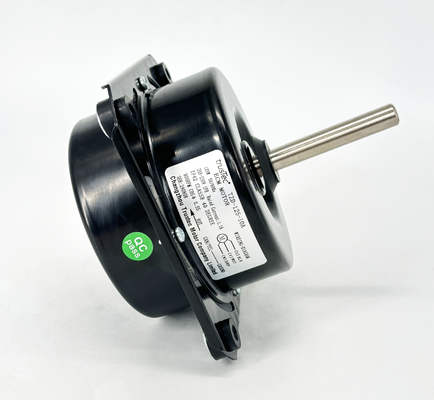

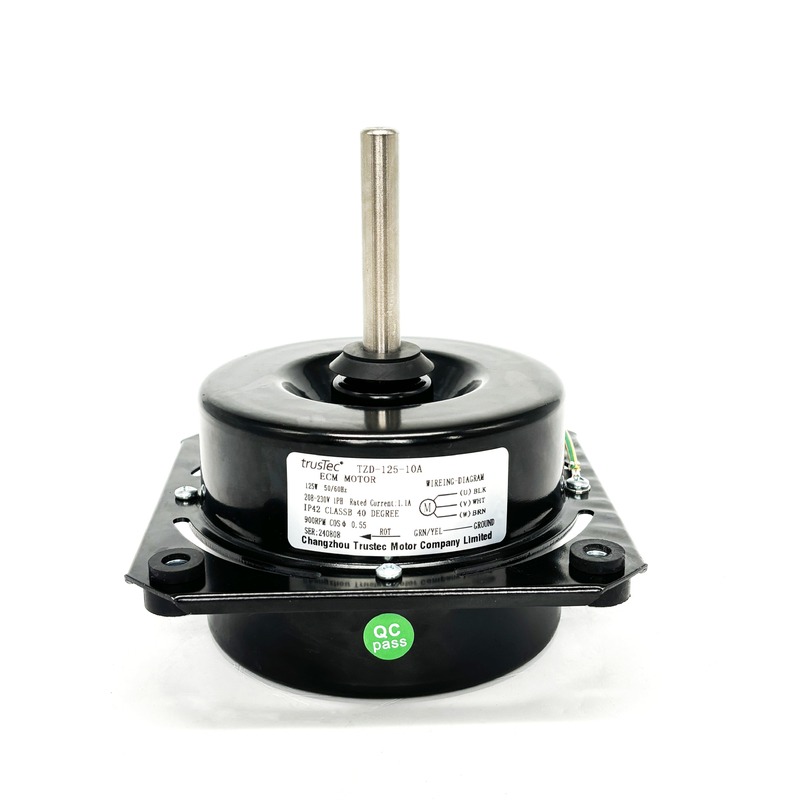

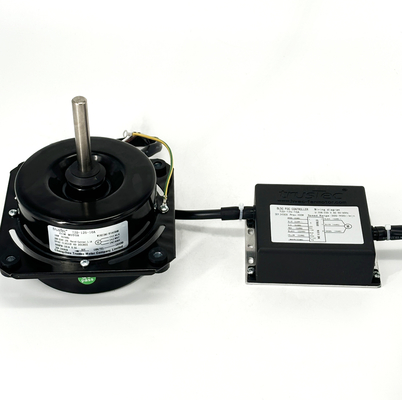

ECM モーター - 125W 900RPM 220V 50/60HZ 0-10V 速度制御
原産地:チャン州,中国
ブランド名:trusTec
認定:CE
モデル番号:TZD-125-10A-TVM
最低注文数量:200個
価格:Negotiable (FOB/CNF/CIF)
支払い条件:T/T,L/C
補給能力:100月1000個
タグ:
製品詳細
ハイライト:
125W BLDCモーター
,900RPM BLDCモーター
,220V BLDCモーター
Product:
電子スムットモーター (ECM)
Supply Voltage:
220V
Enclosure Type:
TEAO (完全閉ざされたエアオーバー)
Supply Frequency:
50/60hz
Thermal Overload:
自動熱過負荷装置を装備する
Current:
1.65A
Phase:
単相
Output Power:
125W
Mounting:
スタッドは,すべての天使を乗せている.
Speed:
900rpm
Bearings:
球軸
Poles:
10セント
Mounting Orientation:
全角度から
Shaft Length:
3.04インチ / 78mm
Insulation Class:
クラスB
Frame Size:
120mm
Max. Ambient Temperature:
40°C/104°F
Shaft Diameter:
1/2 インチ / 12.7mm
Rotation:
CCW (SE)
Flat Length:
1.99インチ / 50mm
Speed Control:
0~10V VSP
Lead Length:
11.8インチ / 300mm
Other:
FG と 10VDC
