扇風機用のECMモーター - 90W 2800RPM 220V 50HZ
原産地:チャン州,中国
ブランド名:trusTec
認定:CE

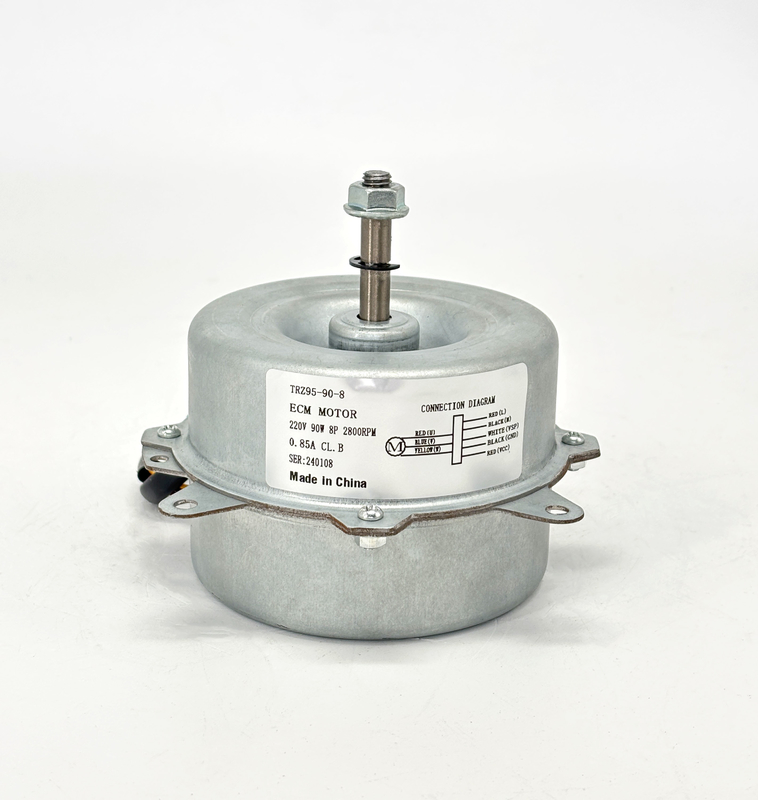

モデル番号:TRZ95-90-8
最低注文数量:200個
価格:Negotiable (FOB/CNF/CIF)
支払い条件:T/T,L/C
補給能力:100月1000個
タグ:
製品詳細
ハイライト:
扇風機用ECMモーター 2800RPM
,扇風機用 90W ECM モーター
,扇風機用の220VECMモーター
Product:
電子スムットモーター (ECM)
Frame Size:
95MM
Motor Type:
直接駆動吹風機
Supply Voltage:
220V
Enclosure Type:
TEAO (完全閉ざされたエアオーバー)
Supply Frequency:
50Hz
Thermal Overload:
自動熱過負荷装置を装備する
Current:
0.85A
Phase:
単相
Output Power:
90W
Mounting:
天使だ
Speed:
2800rpm
Bearings:
球軸
Poles:
8P
Mounting Orientation:
スタッドは,すべての天使を乗せている.
Shaft Diameter:
0.26インチ/6.5mm
Insulation Class:
クラスB
Shaft Length:
1.49インチ/38mm
Rotation:
CW(SE)
Lead Length:
7.87"/200ミリ
Max. Ambient Temperature:
40°C/104°F
Speed Control:
0~10Vの速度制御
製品説明
製品概要
